Fiber Optic Splice Tray Closure for 12 Fibers

Fiber Optic Splice Tray Closure for 12 Fibers

Lead Time:
Ships within 24 hours
Size Chart

Don't See The One You Need?Cablesys can help! Contact us

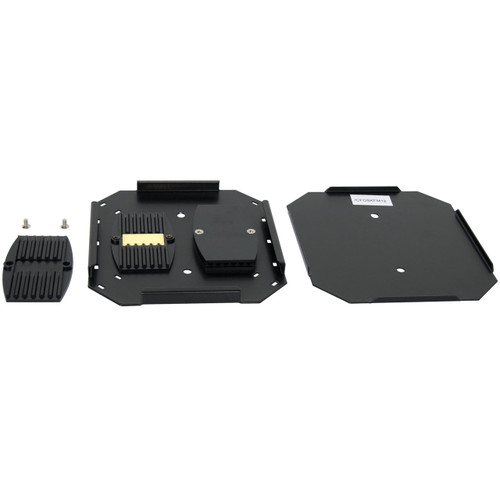

Cablesys, CBS, offers a small fiber splice tray enclosure kit designed to hold and protect 12 individual optical fibers or fusion splices. Fiber splice trays for Corning, PLP, AFL, Multilink enclosures. After splicing, fibers are fragile and can be damaged easily if not protected properly. The splice tray provides a safe location for multiple bare splices for singlemode SM and multimode MM fibers. CBS splice tray is designed to work with CBS fiber optic rack mount enclosures and fiber optic wall mount enclosures. The splice holder is made of UL 94V-0 ABS plastic and is secured to the outer base. Splice holder covers are included to protect the fusion splices. The outer base and cover are made with tough 20 gauge aluminum for additional protection and constant use. The size of the tray is 5.50 inches width, 5 inches depth, and has a thickness of 0.20 inches. It is large enough to provide room for loop retention for controlling the bend radius. The size of the tray also helps prevent induced attenuation. This splice tray is an integral part of a complete fiber optic splicing system.

Proposition 65 Warning for California Residents
