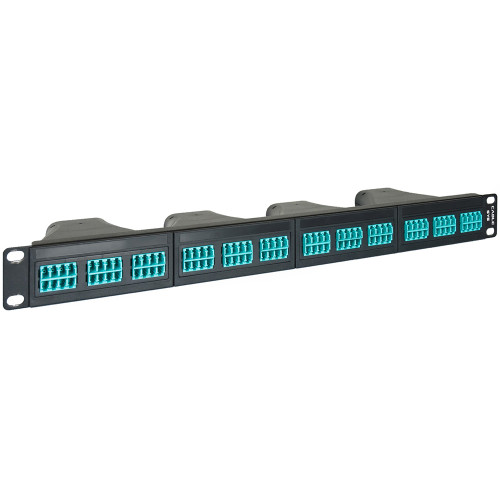

LC to MPO Fiber Optic Patch Panel with 96 10G Aqua Fibers and 4 Configurable Casettes with 24 Fibers per Cassette

LC-MPO Fiber Optic Patch Panel with 96 10G Aqua Fibers and 4 Configurable Casettes with 24 Fibers per Cassette

$859.04
SKU:
GHFPAJGP24
Lead Time:
Ships within 5 Days
Size Chart

Don't See The One You Need?Cablesys can help! Contact us.

Warning SymbolCalifornia Prop 65 Warning

Cablesys high density, HD, and configurable fiber optic LC to MPO patch panel is designed for backbone-to-backbone and backbone-to-horizontal fiber cabling and support 10G multimode MM fiber optic networks. The LC-LC fiber patch panel can accommodate up to 96 fibers and is preloaded with 4 cassettes. Each cassette has 24 LC ports on front and two MPO ports on the rear for interconnecting from cassette to cassette. The cassette is made with tough ABS plastic to protect against wear, corrosion, impact, and weather. The LC-MPO fiber cassette is factory terminated with multimode MM OM3 50/125 fiber. No splicing, polishing, field termination or testing is required. Cassettes can be removed using a flat head screwdriver and snapped back into the panel. CBS patch panel fits on racks and cabinets with 19 inch mounting widths and takes up 1 rack mount space, 1 RMS. Each fiber optic LC adapter, also known as coupler, is built with a metal sleeve for precision alignment and longevity, and it can be used for up to 500 matings. Equipped on the rear are male MPO adapters and require female MPO patch cords to be installed. The LC adapter and MPO adapter is made from durable UL 94V-0 and polyethermide material colored aqua, which is recommended for 10G Ethernet networking. Each LC coupler comes with a protective cap to prevent dust and debris from entering. Each LC-MPO cassette is tested per IEEE 802.3ae 10 Gigabit Ethernet. Test results are included.

Part Number:
GHFPAJGP24
Connector Type:
LC to MPO
Connector Type:
LC
Packaging:
Individual
Rack Mount Space:
1U
Fiber Cable Core:
50/125 (OM3)
Sleeve Material:
Metal
RoHS:
Compliant
Country of Origin:
China
