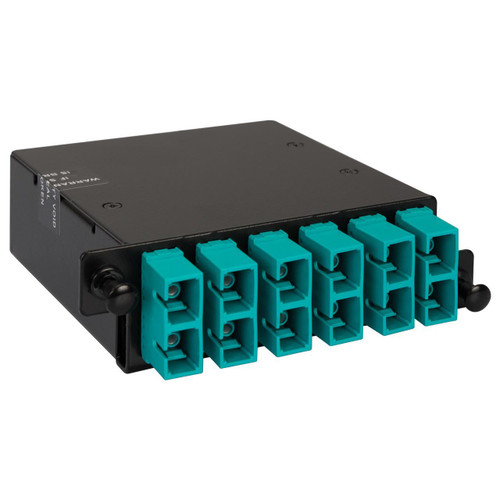

SC-MPO Fiber Optic HD Cassette with Aqua Multimode Adapters and 12 10G OM3 Fibers
- Lead Time:
- Ships within 5 Days
Don't See The One You Need?Cablesys can help! Contact us.
Cablesys offers a high density, HD, compatible fiber optic SC to MPO cassette to fit in HD fiber optic rack mount enclosures and fiber optic wall mount enclosures to support 10G networking. The SC-MPO fiber cassette is factory terminated with multimode MM OM3 50/125 fiber and protected by an aluminum alloy cassette that is black powder coated to protect against wear, corrosion, impact and weather. There are 12 SC ports on front and one MPO port on the rear for interconnecting from cassette to cassette. No splicing, polishing, field termination or testing is required. Each fiber optic SC adapter, also known as coupler, is built with a metal sleeve for precision alignment and longevity, and it can be used for up to 500 matings. Equipped on the rear is a male MPO adapter and requires a female MPO patch cords to be installed. The SC adapter and MPO adapter is made from durable UL 94V-0 and polyethermide material colored aqua, which is recommended for 10G Ethernet networking. Each SC coupler and MPO coupler comes with a protective cap to prevent dust and debris from entering. Cablesys SC/MPO cassette is designed with push and pull fasteners for easy installation and removal. Each SC-MPO cassette is tested per IEEE 802.3ae 10 Gigabit Ethernet. Test results are included.
