SC to SC Fiber Optic Rack Mount Enclosure Preconfigured with 4 HD Adapter Panels with 48 10G Aqua Fibers

SC-SC Fiber Optic Rack Mount Enclosure Pre-configured with 4 HD Adapter Panels with 48 10G Aqua Fibers

Lead Time:
Ships within 5 Days
Size Chart

Don't See The One You Need?Cablesys can help! Contact us.

Warning SymbolCalifornia Prop 65 Warning

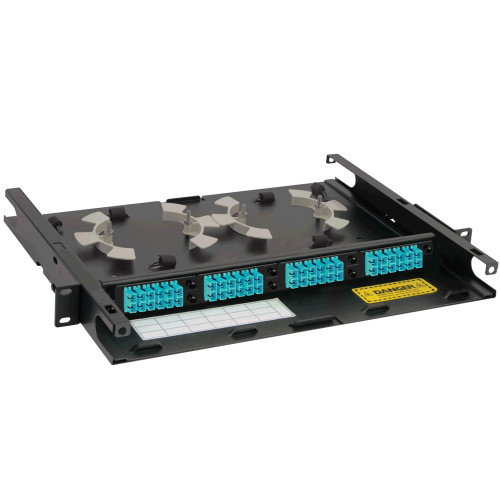

Cablesys rack mount fiber optic enclosure is pre-configured with four high density, HD, compatible SC adapter panels. It is designed to support patching and splicing for up to 48 SC fibers. CBS fiber enclosure fits on racks and cabinets with 19 inch mounting widths and takes up 1 rack mount space, 1 RMS. The enclosure has a slide-out front tray and with removable front and rear covers for easy access to cables and splice trays. There are side openings on the front and rear for cable to enter and exit. CBS rack enclosure provides a safe and clean environment for fiber. It is made with 20 gauge steel, black power-coated, and meets and exceeds all TIA-568-C.3 requirements.
  Cablesys fiber optic HD SC adapter panel fits in HD compatible fiber optic enclosures and supports 10G networking. The SC-SC adapter panel is configured with 6 SC duplex adapters, also known as an SC coupler. The SC/SC fiber adapter panel supports up to 12 optical fibers. Each SC adapter has receptacles on both ends to connect SC patch cords together. The fiber optic adapter is made from lightweight, yet durable, UL 94V-0 plastic, colored aqua, which is recommended for OM3 and OM4 fiber type connectivity. Each fiber optic SC coupler is built with a metal sleeve for precision alignment and longevity, and it can be used for up to 500 matings. The SC adapter is made from durable UL 94V-0 and polyethermide material colored aqua. Each SC fiber adapter comes with protective caps made of polycarbonate to prevent dust and debris from entering. Cablesys SC/SC adapter panel is designed with push and pull fasteners for easy installation and removal. Cablesys HD SC adapter panel is made with 16 gauge cold rolled steel and is black powder coated to protect against wear, corrosion, impact and weather.

Part Number:
Connector Type:
SC to SC
Rack Mount Space:
Number of Adapter Panels:
4 Panel
Sleeve Material:
Number of Fiber:
48 Fibers
Country of Origin:
