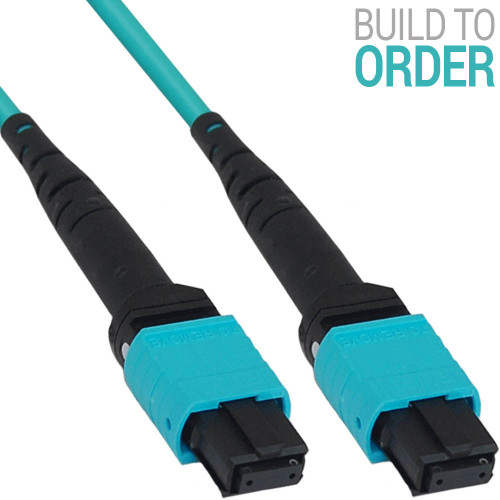

MTP Fiber Optic Patch Cord, 40 Gb Multimode (OM3), Aqua, 8 Fibers, 1 to 100 Meters
Please email cs@cablesys.com for availability and pricing
- Lead Time:
- Ships within 15 business days
- Country of Origin:
- China
Don't see the one you need?Contact us.
Cablesys (CBS) manufacturers data center grade fiber optic MTP patch cords from 1 meter to 100 meters in length. The 50 micron MTP fiber optic patch cable is constructed with Corning Clearcurve OM3 glass. Multimode fiber optic cable comes with 40G Base-SR4 8-fiber configuration for direct equipment to equipment connection to support laser optimized multimode fiber LOMMF and high speed 10G and 40G cabling networks. The high density 8 fiber cable is OM3 50/125 with a 3.0mm diameter. These OM3 fiber jumper cables have a configuration of 50 125. The aqua jacket material is optical fiber nonconductive plenum OFNP and is colored aqua for 10Gb and 40Gb networking. The MTP-MTP fiber optical cord is assembled with MTP female connectors. The MTP connector uses a spring loaded sliding mechanism allowing the fiber patch cord to latch onto adapters providing a secure and reliable connection for network cabling in a data center environment. Each assembly is 100% factory tested to meet Bellcore GR-326 and TIA/EIA standard with maximum insertion loss at <0.75dB (1300nm). Operating temperature is between -40C to +70C. Minimum bend radius for these fiber optic patch cables is 1.18 inch. CBS MTP fiber jumpers are RoHS compliant and comply with IEEE 802.3, IEC-61754-7 and TIA-604-5 type MPO standards. Each fiber optic jumper cable is factory built and tested.
Buy fiber cables direct from Cablesys.com, a reliable fiberoptic supplier and a dependable fiber optics for sale co. We manufacture fiber optic for enterprise data centers, colocation facilities, server farms, cloud storage networks, telecommunication rooms. CBS stocks thousands of products; such as a fiber optic junction box, fiber patch cables, fiber optic jumpers, and fiber optic jumper cables. Our selection of fiber optic cable for sale includes a wide variety of fiber connector types. Go to fiber optic cable shop, Cablesys.com, to view fiber for sale and our fiber optic cable price.
