Pre-terminated Ethernet Patch Panel System

cat6 patch panels

What We Do

We build a DIY network system using CAT6A, CAT6, or CAT5e cables and connectivity for data centers. An Ethernet cable is terminated with a keystone connector on both ends. Then, we pre-bundle six cables together, pre-label and pre-test them.

View Cablesys' pre-terminated patch panel system in our catalog.

Digital PDF Download Request Print Catalog

How it Works?

A unique bezel is built on the end of each cable assembly which is designed to snap into the pre terminated patch panel. It can be easily removed using a flat head screw driver.

Browse Selections
Fiber Optic Data Center

Ideal Locations

Install in enterprise data centers, colocation facilities, server farms, cloud storage networks, and telecommunication rooms.

CAT6 Tested up to 5.7dB Headroom

Each cable assembly, or commonly known as trunk cable, is tested to exceed TIA’s industry performance standards, comply with ANSI/TIA-942-A-1 standard for data centers, and come with a 15-Year performance warranty.

bezel to bezel

Bezel to Bezel or Modular Plugs

Ideal for connectivity between patch panels. Perfect for connectivity between a pre-terminated patch panel and a network switch or router.

Browse Selections



Configure a custom Bezel to Bezel assembly now!

Build Now
bezel to mobile box

Bezel to Mobile or Outlet Box

Install between Ethernet patch panels and open architectural environments such as temporary workstations, POS terminals, warehouses, and more.

Browse Selections
step 1

How to Install a DIY Network?

Step 1

Install the bracket panel. The panel fits 19-inch rack mount widths.

step 2

Step 2

Open package.

step 3

Step 3

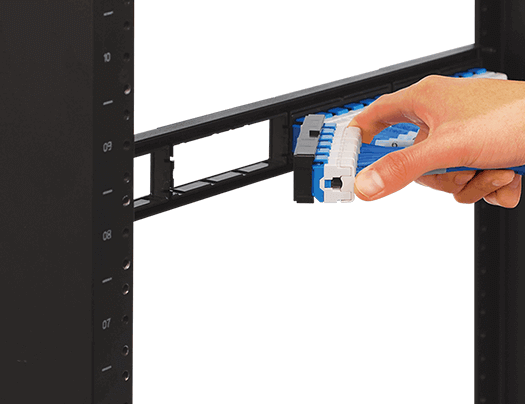

Snap in bezels. Done!

bracket panels

Bracket Panels

Support bulk Ethernet cables on the front and rear of the panels.

Shop Now
bundle6

Bundle6 Patch Cords

Use pre-bundled and pre-labeled Ethernet patch cords to connect to equipment. The wrap is removable and the labels are numbered to identify cables.

Shop Now

How to Order:

Use a Cablesys configurator

Bezel to Bezel



1. Choose Connectivity

  • Bezel to Bezel (Model No. PCA)
  • Bezel to Modular Plugs (Model No. PCB)
  • Bezel to Outlet Box (Model No. PCC)
  • Bezel to Mobile Box (Model No. PCC)

2. Choose Cable Rating

  • Riser-rated CMR
  • Plenum-rated CMP

Consider fire ratings of material and airflow. Most data center environments can use riser-rated cable (CMR). Use CMR in vertical settings, such as cable running between floors through cable risers. Use plenum-rated cable (CMP) in raised flooring systems, drop ceilings, and air handling ducts. Always consult with city or building authorities for the latest codes before deciding the type of cable.

3. Choose Bandwidth

  • 10G CAT6A Shielded (FTP)
  • 10G CAT6A Unshielded (UTP)
  • 1G CAT6e Unshielded (UTP)
  • VolP CAT5e Unshielded (UTP)

Consider what active equipment or devices will be supported throughout the entire network. Use Foiled Twisted Pair (FTP) in enviroments with high Electromagnectic Interference (EMI) or Radio Frequency Interference (RFI). Use Unshielded Twisted Pair (UTP) in enviroments with low interference.

4. Choose Length

  • Standard (25, 50, 75, and 100 feet)
  • Custom (10 to 295 feet)

Consider accessibility to active equipment and the layout of the room when measuring, then round up to the nearest foot. We pre-build and stock cable assemblies in standard lengths to help reduce our lead time and ship orders faster. We also custom build up to 295 feet per TIA® standard.

5. Order Bracket Panel and Cable Management Brackets (sold separately)

A bracket panel is required to mount the cabling onto the rack or cabinet. The panel has four ports to snap in bezels. If there are any unused ports, Cablesys offers a blank bezel to cover them. Cable management brackets help organize and secure cords and cables.

Don't see the configurations you need? We can build to your spec, email us at cs@cablesys.com
